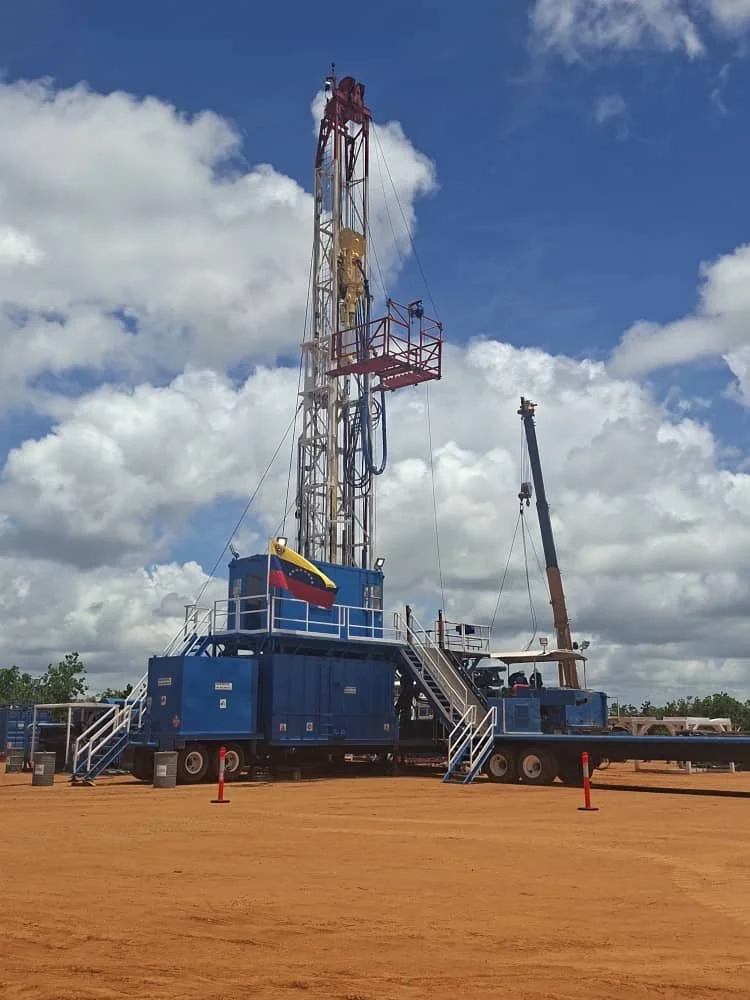

EIV-4 750HP Drilling

Status Under Contract
Client Petropiar
Location Huyapri field. Orinoco Belt. Anzoategui . Ve

Rig Type Land (Drilling)
Rig Classification Trailer-Mounted

Drawworks

Motor Detroit Diesel 2000 Series
HP 750
Transmission Allison
Diameter 11 inches
Brake Type Disc and hidraulic brakes

Model IRI International
Capacity (lbs) 300
Setback (lbs) 19,000
Max Depth (feet) 8000 ft

Pressure (PSI) 5,000

Bore Diameter 11 inches
Pressure (PSI) 3,000

Model HT-55
Torque (ft-lbs) 55000

Model Gardner Denver PZ-8
Type Triplex pump
Capacity (HP) 750
Pump Motor Cat

Model Gardner Denver PZ-7T
Type Triplex pump
Capacity (HP) 750
Pump Motor Cat-3508

Generator Motor (02) Detroit Diesel Series 60
Generators 350 Kwatts (Each)
Loader 220-480 Volts
Amp 437.5
Frecuency 50-60 Hz

Safety Stats Without LTA
Downtime Stats 1,5% Down in a year
